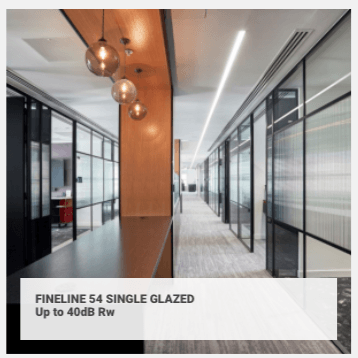

Glazed                   Partitions

Up to 40dB Rw

Up to 40dB Rw Sound Reduction

Maximum Height 3000mm

Timber or aluminium door frames available

Single glazed, double glazed and solid doors available

Slimline 54mm wide channel

+- 25mm Deflection head available

54mm wide head, base and wall abutment channels with applied horizontal and vertical banding.

GLAZED PANEL & ACOUSTIC PERFORMANCE:

10mm Toughened glass – Rw 34dB.

12mm Toughened glass – Rw 36dB.

12.8mm Acoustic laminated glass – Rw 40dB.

DEFLECTION:

Aluminium 2 part head assembly provides +/- 25mm for both the single glazed screen and the integrated plasterboard partition walls.

GLASS JUNCTIONS:

Straight, 90 degree, variable and 3 way dry joint glass to glass junctions with optional silicon glass to glass joints and 3 way posts that accept plasterboard partition room dividing walls.

Polyester powder coated stock colours silver (RAL 9006) and white (RAL 9010). All other BS4800 and RAL colours available to order. Specialist finishes available on request.

MANIFESTATION:

To meet the requirements of Part M of the Building Regulations (minimum 50mm dots @ 100mm centres) or to clients specification using digital printed logos / graphics on film, screen printed or acid etched glass.

DOOR LEAF & DOOR FRAMES:

Expansive range of glass doors available, from frameless to Contempo acoustic single glazed and double glazed doors.

IRONMONGERY:

Range of offset top and bottom hinges, top and bottom pivots complete with floor spring (BTS75) complemented with stainless steel or polished lever sets, pull handles and patch locks.
