Glazed                   Partitions

Up to 36dB Rw

Up to 36dB Rw Sound Reduction

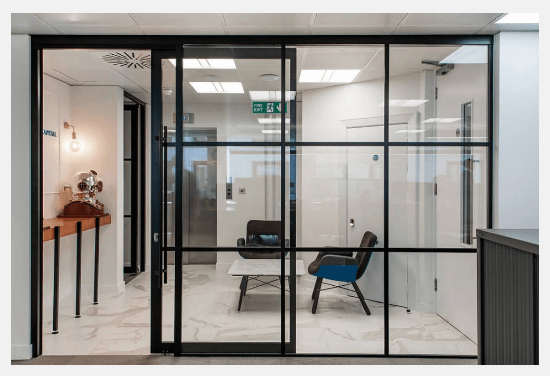

Single glazed acoustic sliding door

Maximum Height 3000mm

+- 25mm Deflection head available

30mm Horizontal and vertical mullions

80mm Head with 30mm wall abutment and 24mm base channel, applied 30mm vertical and horizontal banding

GLAZED PANEL & ACOUSTIC PERFORMANCE:

12mm Toughened glass – Rw 34dB.

12.8mm Acoustic laminated glass – Rw 36dB.

DEFLECTION:

Aluminium 2 part head assembly provides +/- 25mm for both the single glazed screen and the integrated plasterboard partition walls.

GLASS JUNCTIONS:

Straight, 90 degree, variable and 3 way dry joint glass to glass junctions with optional silicon glass to glass joints and 3 way posts that accept plasterboard.

Polyester powder coated stock colours silver (RAL 9006) and white (RAL 9010). All other BS4800 and RAL colours available to order. Specialist finishes available on request.

MANIFESTATION:

To meet the requirements of Part M of the Building Regulations (minimum 50mm dots @ 100mm centres) or to client’s specification using digital printed logos / graphics on film, screen printed or acid etched glass.

IRONMONGERY:

Range of guardsman handles available, please speak to Fusion technical team for more information.
